2.1 Three Ways to Install

Desktop app, from source, or Docker Compose — pick based on what you intend to do

Open Design ships three installation paths. The one you choose sets the ceiling on what you can do: the desktop app hands you a running system in minutes; the from-source path lets you modify skills and plugins; Docker Compose gets you a server deployment. Knowing the tradeoff upfront prevents the most common first-run frustration.

As of June 2026, Open Design is at v0.9.0 (released June 2, 2026). All three paths install the same version of the daemon and frontend; they differ only in packaging and environment control.

Desktop App

Download the prebuilt installer from open-design.ai. Run it like any desktop application. The daemon starts automatically on first launch; the Electron shell wraps the frontend and communicates with the daemon via sidecar IPC. No terminal required.

From Source with pnpm

The from-source path requires exactly Node ~24 and pnpm 10.33.x. corepack enable ensures pnpm is at the right version before you install.

$ git clone https://github.com/nexu-io/open-design.git
$ cd open-design
$ corepack enable
$ pnpm install
$ pnpm tools-dev run web

Docker Compose

If you're deploying Open Design to a server or shared machine, Docker Compose handles the daemon, frontend, and SQLite volume in one command. The deploy/ directory at the repo root contains the Compose configuration.

$ cd deploy
$ docker compose up -d

Docker Compose brings up the daemon and serves the frontend at http://localhost:7456 by default. There is no Electron shell in this mode; you access Open Design through any browser. The SQLite database persists in a named volume so your projects survive container restarts.

2.2 First Run

Launch, verify, and confirm the daemon is healthy before generating anything

The daemon owns the truth. Before you can generate an artifact, the daemon must be running and healthy. These steps apply to the from-source path; desktop app users can skip to step 4 --- the app handles steps 1 through 3 automatically.

$ pnpm tools-dev run web
# Expected: daemon and frontend serving on :7456

$ curl -s http://localhost:7456/health
# Expected output:
{"status":"ok","version":"0.9.0"}

Once you have more than a handful of runs in flight, the Projects sidebar becomes the supervision surface. As of v0.15.1 it is a kanban board with a dedicated Needs input column --- paused agent turns that explicitly wait for a human reply rather than failing silently in the background. The full board layout is shown in Figure D.7.

Instructions, Memory, and Design Jury

Settings also separate three knowledge layers that older releases buried or omitted. Treat them as different contracts with the agent:

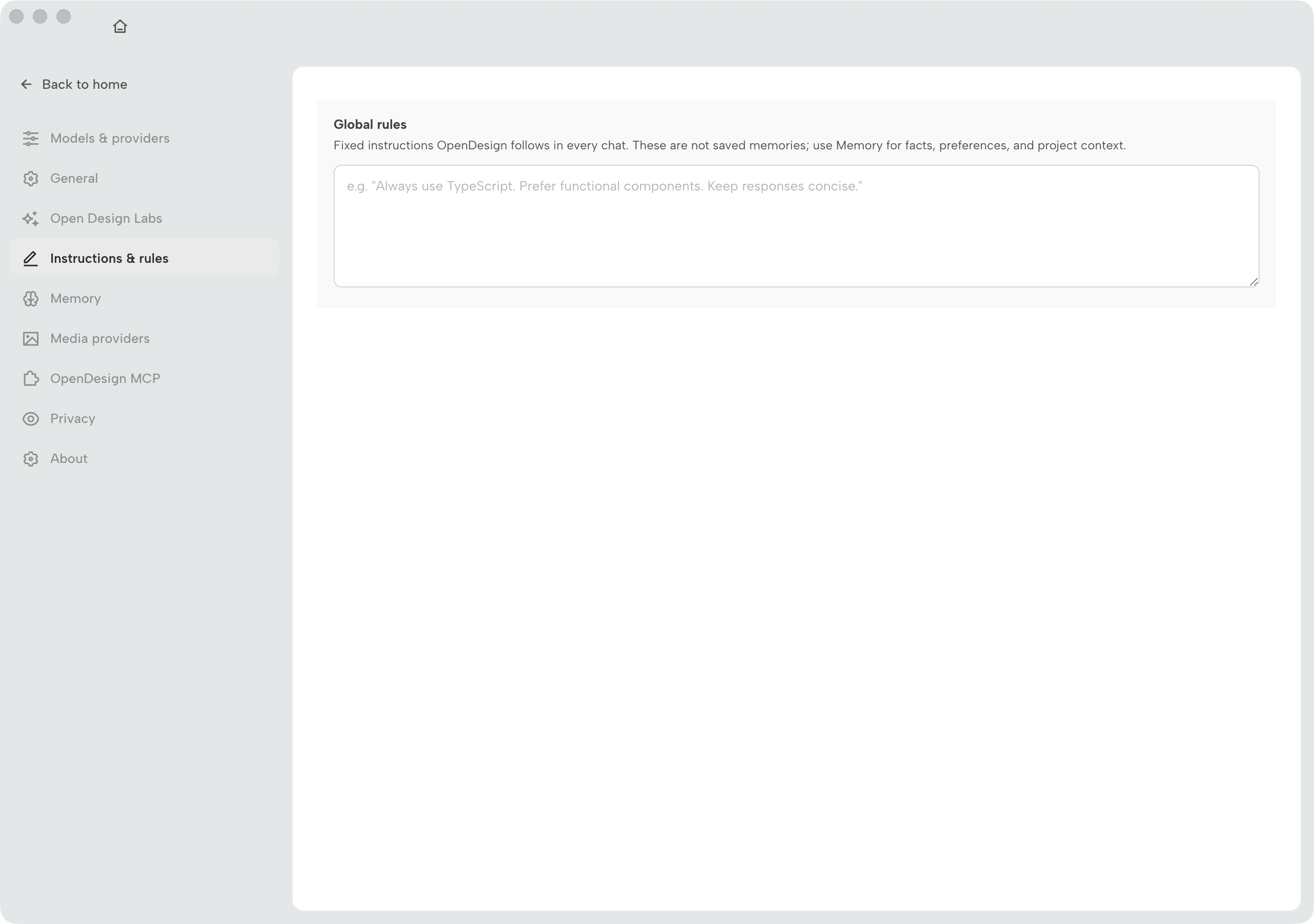

• Instructions / Rules — fixed global rules injected into every chat. Stable policy, not facts.

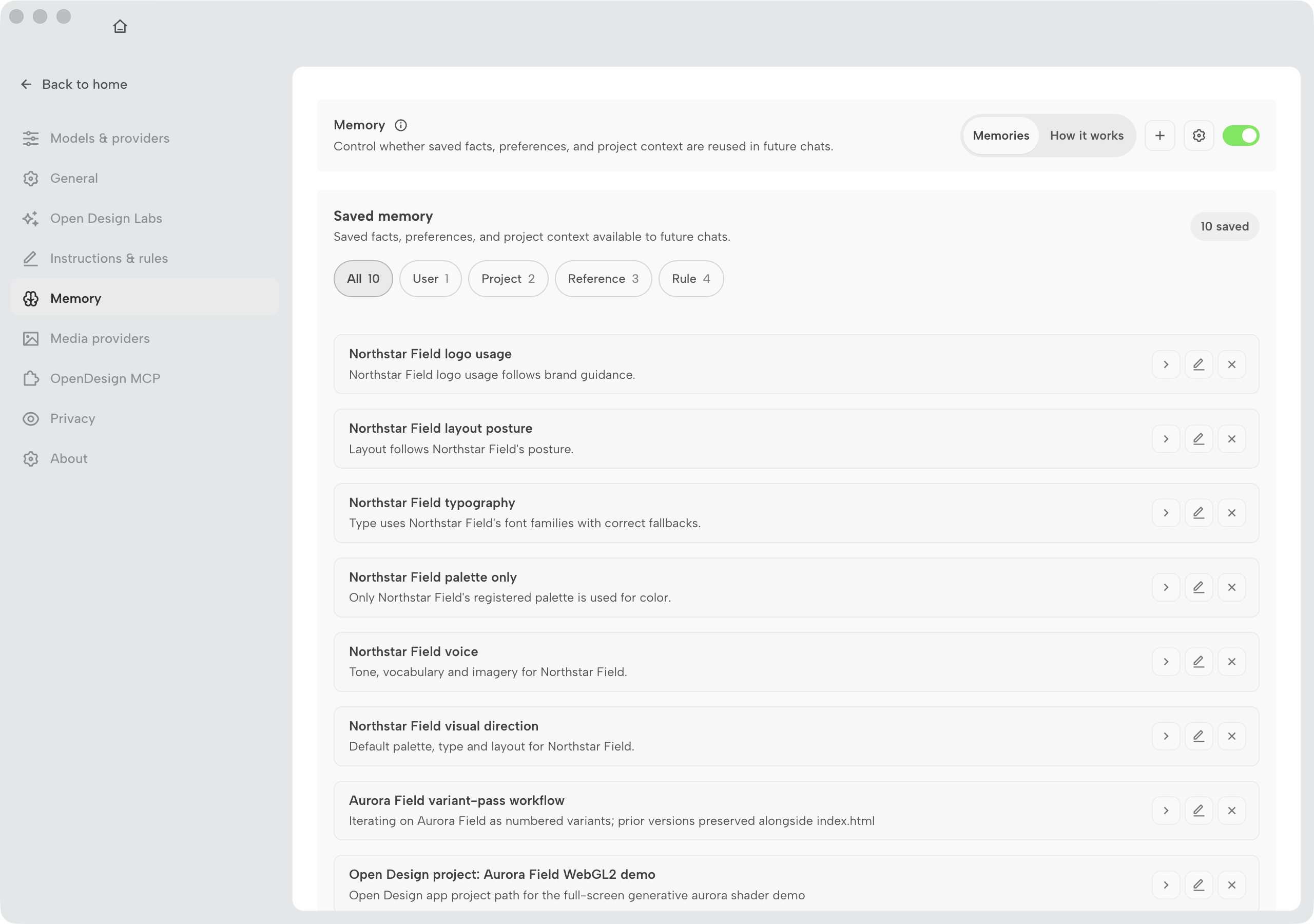

• Memory — saved facts categorised as User, Project, Reference, or Rule, with a master toggle and per-item edit/delete. Extracted from chats and injected when relevant.
• Design Jury — optional five-panel scored review that streams alongside generation so you can interrupt before shipping. Covered in depth in Chapter 08.

The rest of Settings

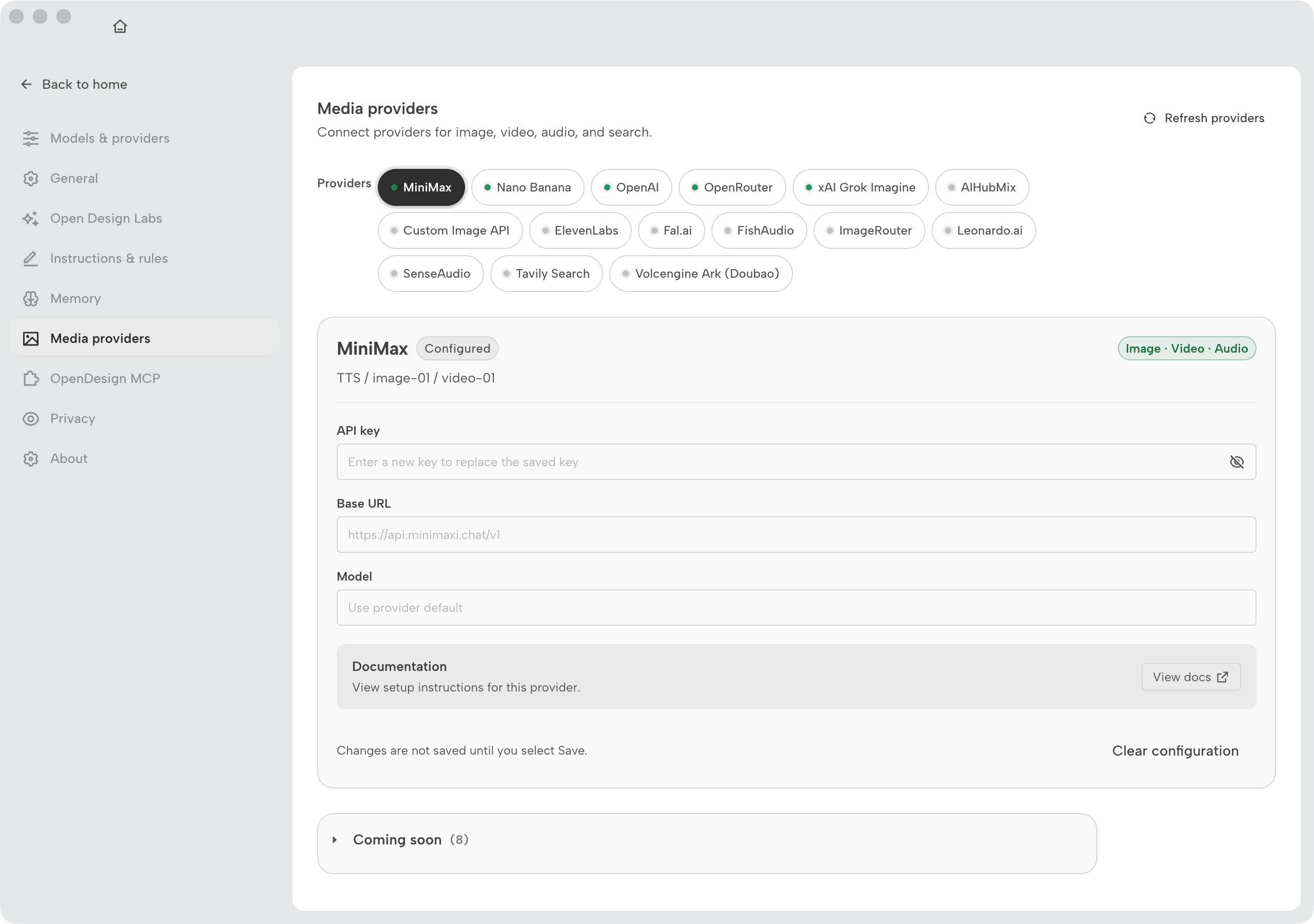

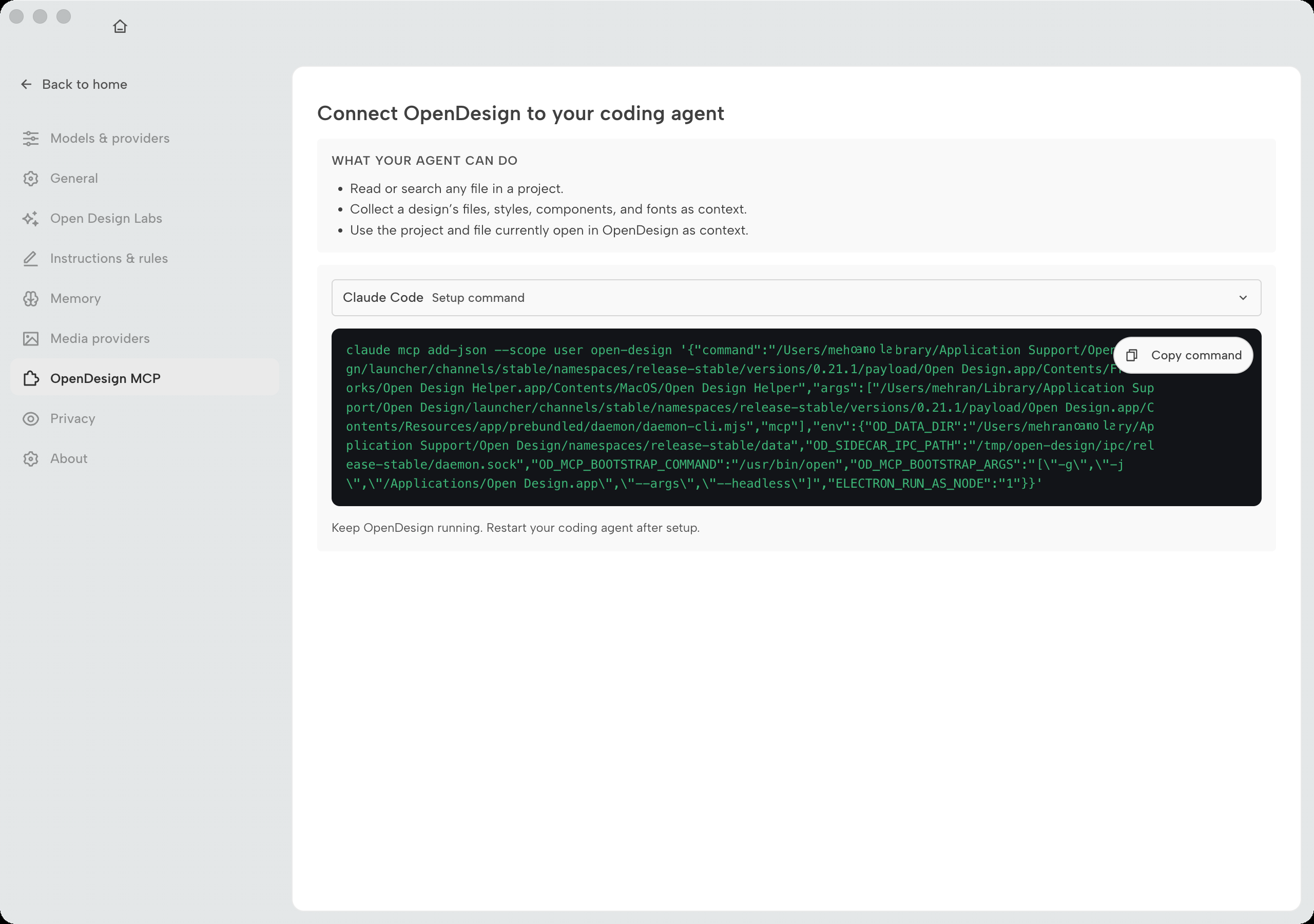

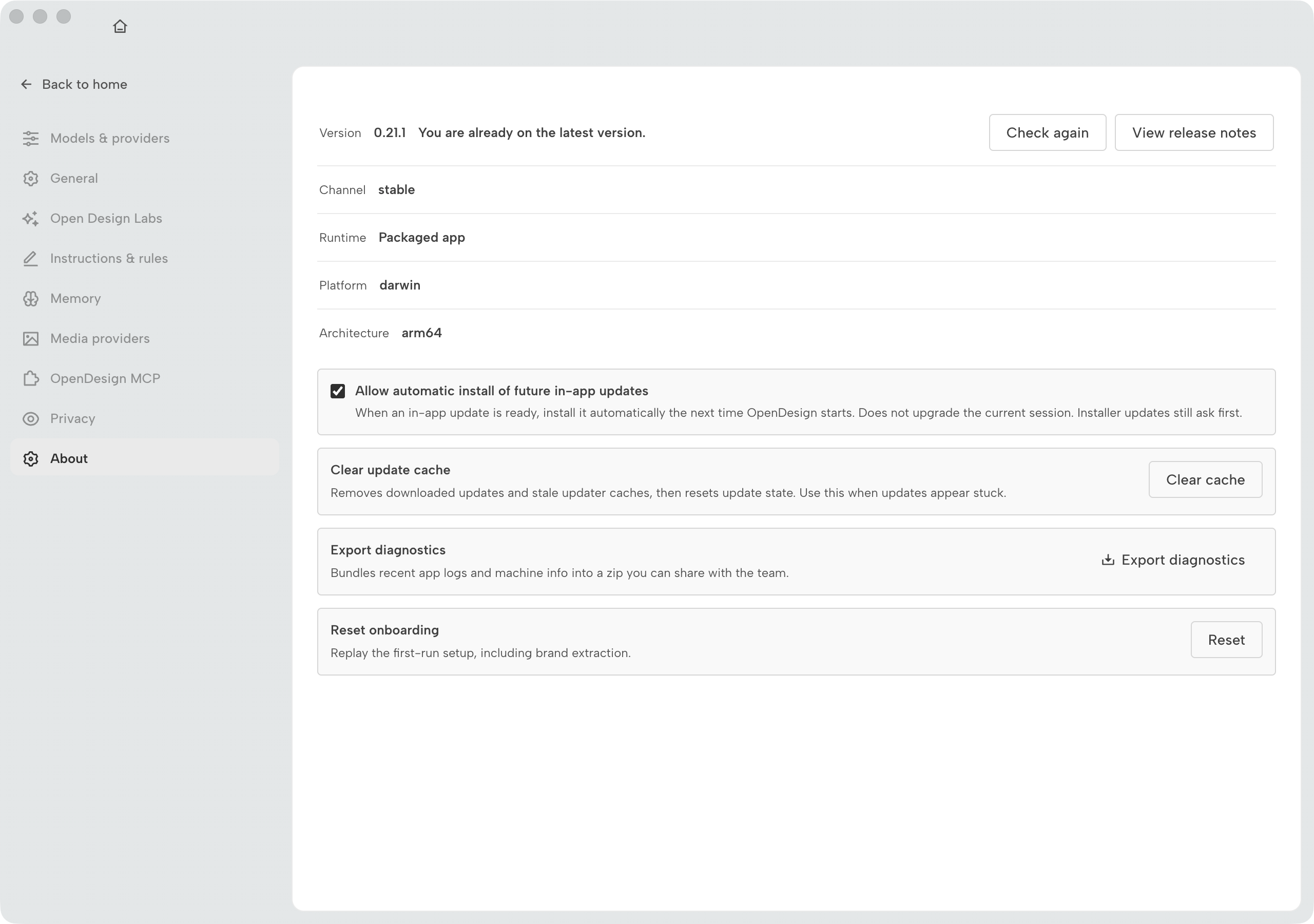

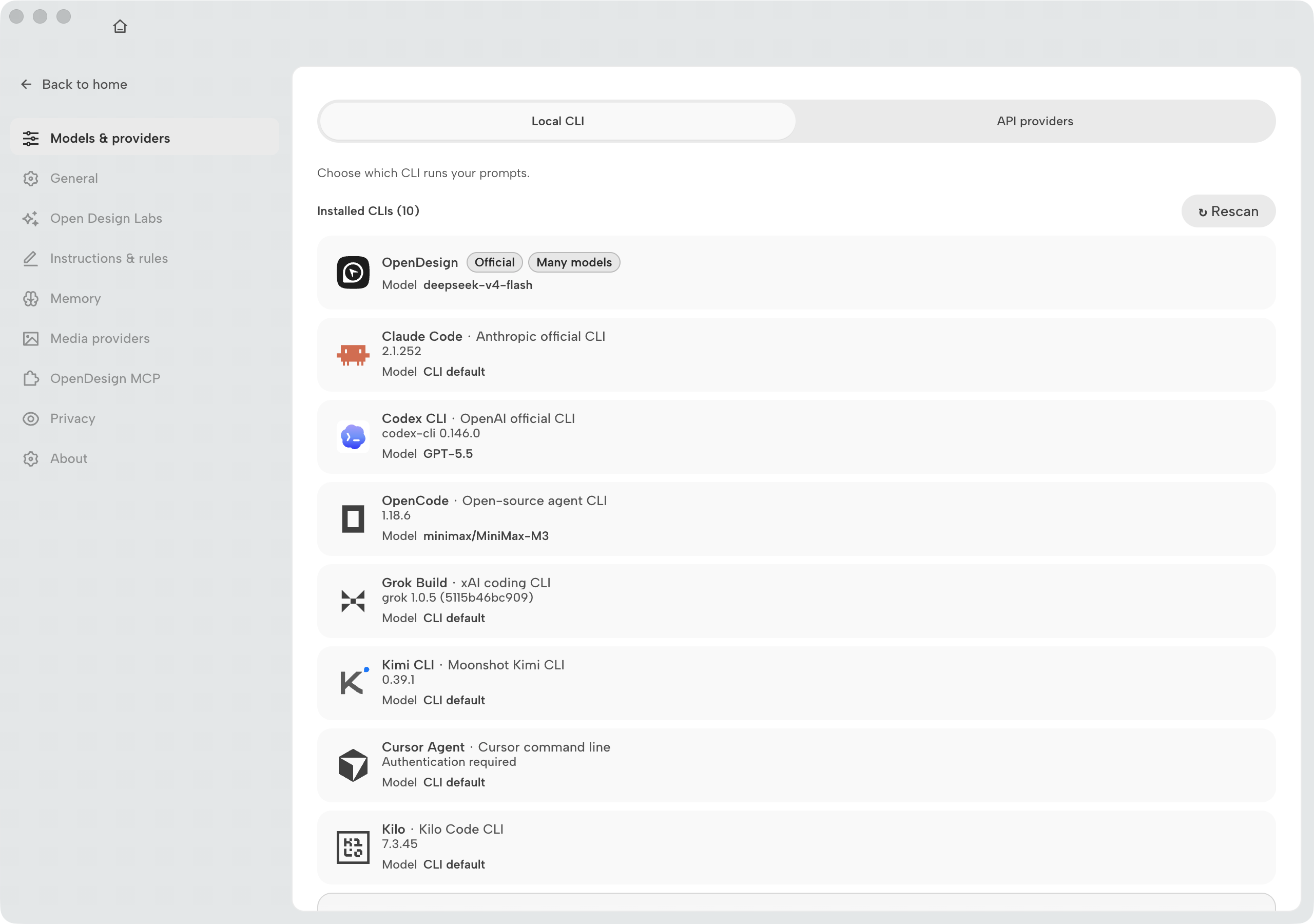

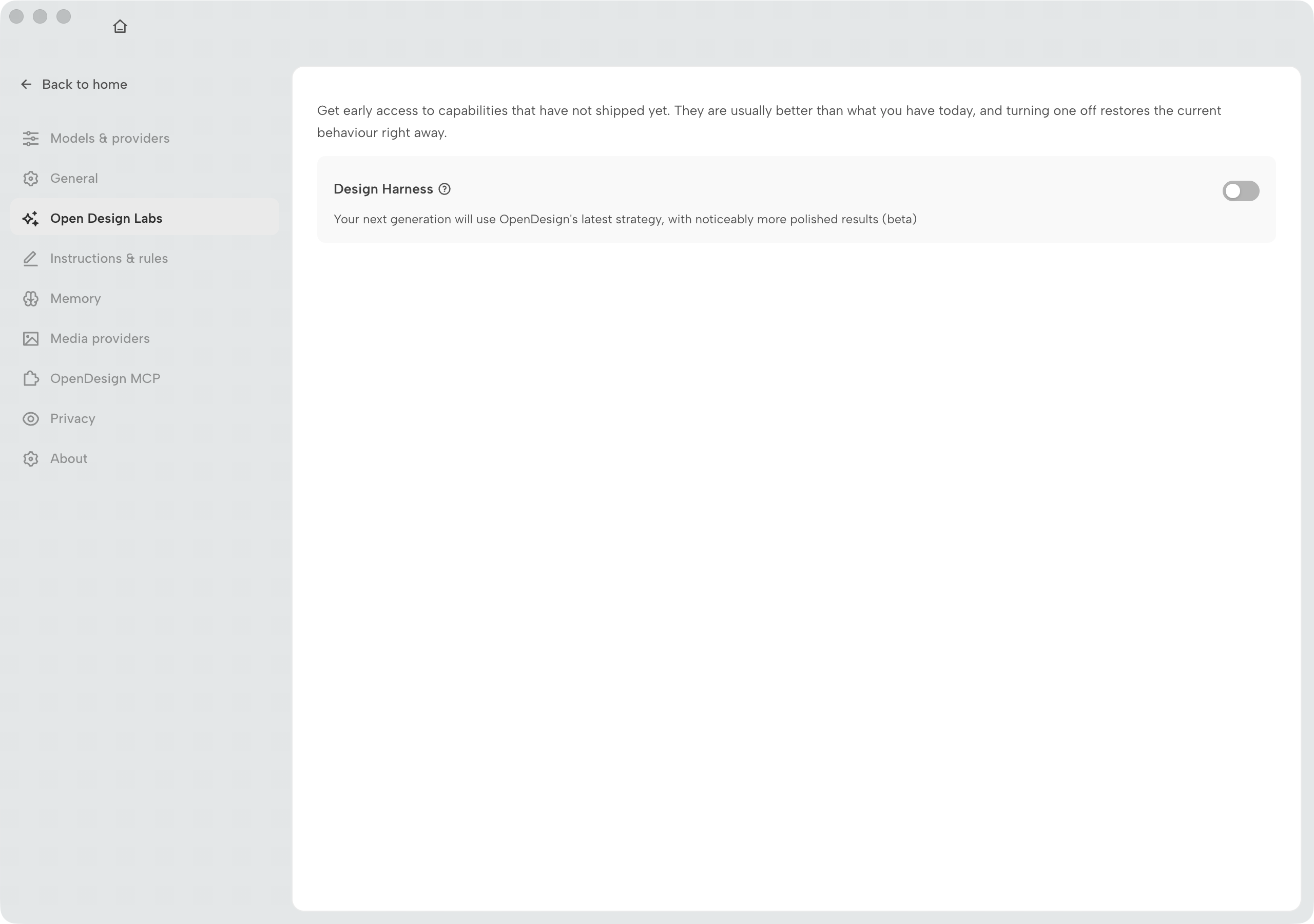

As of v0.15.1 the Settings dialog carries a left navigation rail with every configuration surface in one place. The knowledge layers above are the ones you touch most often during generation; the table below is a complete map of the rail so you know where to look when the environment changes.

The full visual tour of every Settings panel --- including Execution mode and Design Jury --- is in Appendix D.7.

When the First Run Breaks

Native build errors and version mismatches account for most first-run failures. Here are the patterns I encounter most often.

2.3 The Daemon

The Express process that owns orchestration, storage, and streaming

The daemon owns the truth. It is a long-lived Node 24 Express process that owns three things: the SQLite database, the project files on disk, and the agent orchestration loop. The frontend and the preview iframe are both just windows onto what the daemon holds. Understanding this split resolves most confusion about where state lives and why a browser refresh doesn't lose your work.

The daemon exposes an HTTP API consumed by the Next.js frontend. For artifact generation, it uses Server-Sent Events (SSE) to stream tokens from the agent back to the browser in real time. SSE is unidirectional --- the daemon pushes; the frontend listens --- which keeps the streaming path simple and resilient to browser tab-switching.

SSE and the Streaming Artifact Parser

When the daemon receives an artifact generation request, it opens an SSE stream to the client. Tokens arrive as data: events. The frontend's streaming artifact parser assembles them progressively --- which is why you see the artifact appear word by word in the preview before generation is complete.

This matters for troubleshooting: if the preview stops mid-generation, the SSE connection dropped. This is almost always a network proxy or a browser extension killing long-lived connections. Disable proxy-caching extensions or set a generous SSE timeout if you're behind a corporate proxy.

better-sqlite3 and Synchronous Storage

The daemon uses better-sqlite3 for all persistent state. Unlike the async SQLite drivers, better-sqlite3 runs synchronously --- writes block until committed, reads return immediately. This keeps the daemon's internal state machine simple: no callback hell, no partial-write races, no connection pool. For a single-user local daemon, synchronous SQLite is exactly the right call.

The tradeoff is that every write to ~/.od/app.sqlite is a blocking operation on the daemon's event loop. In practice this is not a problem for interactive use, but if you write a plugin that writes frequently to the database in a tight loop, you'll feel it. Batch writes where you can.

2.4 Where Your Work Lives

The .od directory layout and what to back up

Open Design stores everything under ~/.od/. Two things matter here: the project directories under ~/.od/projects/ hold your artifact files; ~/.od/app.sqlite is the index that makes sense of them. Back up both or you lose either the files or the ability to navigate them.

~/.od/
├── projects/
│   ├── <project-uuid-1>/
│   │   ├── artifacts/      # Generated HTML, PDF, PPTX, MP4, ZIP, MD files
│   │   ├── previews/       # Cached preview snapshots
│   │   └── exports/        # Final exported files
│   └── <project-uuid-2>/
│       └── ...
├── app.sqlite              # All project metadata: names, histories, settings
├── config.json             # Daemon configuration: ports, model provider keys
└── logs/                   # Daemon logs, one file per day

What to Back Up

The daemon owns the truth, and the truth lives in two places. Backing up one without the other leaves you in an inconsistent state.

Portability Between Machines

To move an Open Design installation to a new machine, copy the entire ~/.od/ directory. Because the daemon indexes projects by UUID, not by absolute path, the projects should be navigable on the new machine once you start the daemon. If you're using Docker Compose, the named volume is the equivalent of ~/.od/; export it with docker volume export.

2.5 The Frontend and the Sandboxed Preview

Next.js 16, React 18, and the srcdoc iframe that keeps generated code isolated

The frontend is a Next.js 16 application built on React 18 and TypeScript. It talks to the daemon over HTTP and receives the artifact stream over SSE. The most important design decision in the entire preview system is the choice to render generated artifacts inside a sandboxed srcdoc iframe --- not in the React component tree directly. That choice is what Open Design documents as isolating agent-generated HTML, JavaScript, and CSS from the host page's browser session, cookies, and DOM. (This describes documented design intent for v0.9.0; it is not a security guarantee — see the not-security-advice note in front matter.)

Why srcdoc, Not innerHTML

A naive implementation would parse the generated HTML and inject it into a DOM node with innerHTML. The problem: any JavaScript in the generated artifact would execute in the same origin as the Open Design frontend. A generated artifact with a document.cookie access or a localStorage.clear() call would run against your real session.

The srcdoc iframe solves this by giving the artifact its own isolated document. Open Design's sandbox configuration omits allow-same-origin while including allow-scripts; in this configuration, the browser prevents scripts inside the iframe from accessing the parent frame's DOM or storage. The streaming artifact parser writes tokens into the iframe's document as they arrive from the daemon, so you see the artifact build in real time. (This describes the sandbox configuration as documented for v0.9.0; sandbox attributes may be adjusted in future versions — verify current behavior against the repo.)

The Next.js 16 Frontend

As of June 2026, the frontend runs on Next.js 16 with React 18. The App Router is used throughout. The frontend is a display layer --- it does not hold authoritative state. If you close the browser tab and reopen it, the project list and artifact history are still there because the daemon and its SQLite database didn't change. The daemon owns the truth; the frontend renders it.

This separation has a practical consequence: you can restart the frontend server without losing work. The daemon continues running and holds all state. When the frontend reconnects, it reads the current state from the daemon. This also means you can have multiple browser tabs showing different projects simultaneously, each connected to the same daemon --- they stay in sync because they're all reading from the same source.

2.6 The Electron Shell and Docker Option

Desktop packaging with sandboxed renderer, and server deployment with Compose

The prebuilt desktop app wraps the frontend and daemon in an Electron shell. Electron handles process management, auto-update, native OS integration, and the sandboxed renderer that adds a second layer of isolation on top of the srcdoc iframe. If Electron is the wrong fit for your deployment --- shared servers, headless CI, Docker-native infrastructure --- the Docker Compose path gives you the same daemon and frontend without it.

The Electron Shell

Electron hosts the Next.js frontend in a sandboxed renderer process. The renderer communicates with the daemon via sidecar IPC --- a lightweight inter-process channel that the Electron main process manages. This means the daemon is a separate Node process from the Electron main process, not a thread inside it. If the daemon crashes, the Electron shell can report it and offer a restart without the whole app exiting.

The Electron sandboxed renderer disables Node.js integration in the browser context, so the frontend JavaScript cannot make arbitrary filesystem calls even though it's running inside a desktop app. Open Design's desktop packaging is designed with two sandbox boundaries between agent-generated code and your filesystem: the srcdoc iframe boundary, and the Electron renderer boundary. (This describes documented design intent for v0.9.0; it is not a security warranty — see the not-security-advice note in front matter.)

When to Use Docker Compose

Docker Compose is the right choice when you need Open Design accessible to multiple people without installing Electron on each machine, or when you're deploying to a Linux server. The Compose file in deploy/ runs the daemon and frontend as separate services with a shared SQLite volume.

Architecture in One View

At this point you have a mental model of the full system. The daemon owns the truth: it owns the SQLite database, the files, and the agent orchestration. The frontend and the preview iframe are windows. The Electron shell is optional packaging. Docker Compose is an alternative runtime environment. All of these serve the same daemon core.
